B 80 8 OHM | VISATON
High-end full range speaker, 8 Ω, 85 dB, 80 Hz to 20 kHz, black, B 80 8 OHM
Order No.: 43M160
EAN: 4007540012612
MPN:
B 80 8 OHM
1261
Unit Price (€ / pc.)
84.7756 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
84.78 € *
Price list
Quantity
Price per unit*
1 pcs.
84.7756 €
5 pcs.
79.6824 €
15 pcs.
76.6360 €
50 pcs.
73.2445 €
*incl. VAT plus shipping costs
**Subject to prior sale

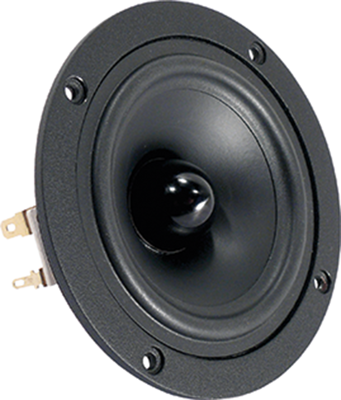

High-end full-range loudspeakers, type Visaton B 80.
With well-balanced response characteristic. The interaction between the coated paper cone, the ventilated centering spider, the phase plug, and the strong, yet light-weight neodymium drive enabled us to create a product with particularly well-balanced frequency response, very low distortion and minimized mechanical losses, which is ideal for use in small high-end shelf speakers, or as mid-high-range unit in high-end multi-way speakers.
Rated load: 30 W
Peak load: 50 W
Impedance: 8.0 0hm
Frequency response: 80 to 20000 Hz
Mean sound pressure level: 85 dB
Resonant frequency: 110 Hz
Weight: 320 g
Type: B 80, high-end full-range loudspeaker
Manufacturer: Visaton
Technical specifications
| Colour | black | |

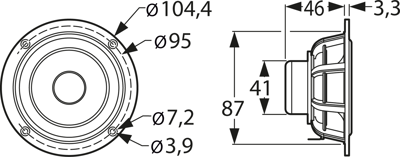

| Installation diameter | 87 mm | |
| Resonance frequency | 110 Hz | |
| Sound pressure level | 85 db | |
| Version | high-end full range speaker | |
| min. transmission range | 80 Hz | |
| Max. transmission range | 20 kHz | |
| Impedance | 8 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85182900 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
