B 200 6 OHM | VISATON
High-end full range speaker, 6 Ω, 96 dB, 40 Hz to 18 kHz, black, B 200 6 OHM

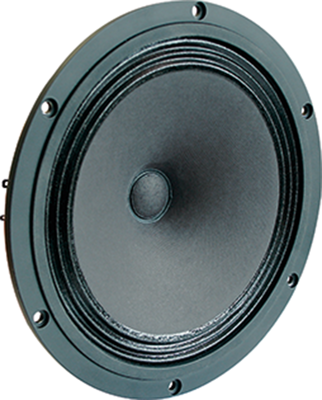

High-end full-range loudspeakers, type Visaton B 200.
High efficiency and well-balanced frequency response without greater fluctuation, thanks to a light-weight paper diaphragm, fabric surround, and the optimized driver with 25 mm voice coil (aluminum wire) that fully utilizes the magnetic field in the air gap. Vented Capton voice coil carrier. The solid aluminum die-cast basket has a pleasant appearance and, with its apertures for venting the damper, also contributes towards the minimization of mechanical losses. Distortions remain at a constant and extremely low level;
Rated load: 40 W
Peak load: 70 W
Rated impedance: 6,0 ohm
Frequency response: fu to 18000 Hz (fu represents the low frequency limit depending on the shell)
Mean sound pressure level: 96 dB
Resonant frequency: 40 Hz
Weight: 2.16 kg
Type: B 200, high-end full-range loudspeaker
Manufacturer: Visaton
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Resonance frequency | 40 Hz | |
| Impedance | 6 Ω | |
| min. transmission range | 40 Hz | |
| Version | high-end full range speaker | |
| Sound pressure level | 96 db | |
| Max. transmission range | 18 kHz | |

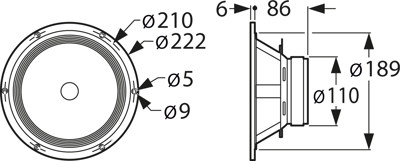

| Installation diameter | 188 mm |
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85182900 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
