HW 2 / 70 NG 4 OHM | VISATON
Frequency crossover, for 4 Ohm impedance, HW 2 / 70 NG 4 OHM
Order No.: 43M900
EAN: 4007540054018
MPN:
HW 2 / 70 NG 4 OHM
5401
Unit Price (€ / pc.)
25.5612 € *
Standard delivery time from the manufacturer is: 1 Week

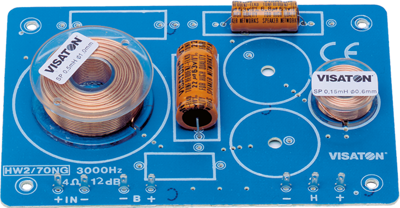

Crossovers, type Visaton HW 2/70 NG.
2-way crossover made of high-grade copper coils and MKT film capacitors, as well as low-loss AF electrolytic capacitors. Tested (each one) in terms of function, slope steepness, and crossover frequency; Slope steepness: 12 dB/octave. Rated load: 100 W. Peak load: 160 W. Crossover frequency: 3000 Hz. Dimensions: 100 x 150 mm.
Technical attributes (type, impedance): 5401, 4.0 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | 4 Ohm impedance | |
| Version | frequency crossover |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85189000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
