03.000.334.2 | Vertiv

Outlet strip, 4-way, 2.5 m, 16 A, orange, 03.000.334.2

Order No.: 07L4755
EAN: 4099891431792
MPN:
03.000.334.2
03.000.334.2 Vertiv Power Outlet Strips and Cable Drums Image 1
03.000.334.2 Vertiv Power Outlet Strips and Cable Drums Image 2
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
Outlet strip, 4-way, 2.5 m, 16 A, orange, 03.302.054.6
Outlet strip, 4-way, 2.5 m, 16 A, orange, 03.302.054.6
Order No.: 07L4692
Manufacturer: Knürr
per pc. 104.72 € *

Schuko-style outlet strips, type Knürr Di-Strip Serimat Compact.

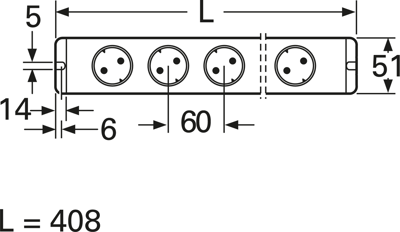

With 2-pole switch with or without lamp; Outlet angle: 30°. Outlet pitch: 60 mm. Dimensions: H 45 mm. Housing width: 51 mm. Rating: 250 VAC/16 A. Design: CE label according to Low-Voltage Directive 73/23/EC and EMC Directive 89/336/EC. Housing: rugged double-shell steel case, powder coated structure. Internal conductor: continuous busbars made of brass. Patch cord: H05VV-F3G 1.5 mm², 2.5 m, PVC, with molded angled plug. Housing color: pastel-orange. Plastic parts: light-gray RAL 7035.

With switch, type 03.000.

Technical attributes (type, number of outlets, color, dimension L): 03.000.334.2, 4 outlets, RAL 2003 pastel-orange, L 408 mm

Technical specifications
Cable length 2.5 m
Colour orange
Degree of protection (IP) IP20
Depth 45 mm
Rated current 16 A
Width 51 mm
Length 408 mm
USB connection No
Material sheet steel
Overvoltage protection No
Can be switched off Yes
Number of sockets 4
Master-Slave No
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
