86127 301 501 | VARTA

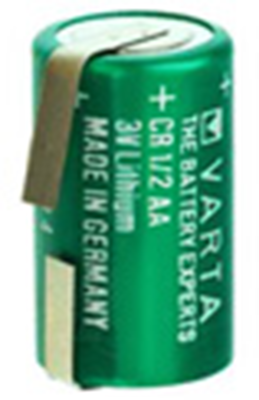

Lithium-battery, 3 V, 1/2R6, 1/2 AA, round cell, soldering lug, 86127 301 501
Order No.: 26A4142
EAN: 4099891651657
MPN:
86127 301 501
CR1/2AA
Unit Price (€ / pc.)
11.9000 € *
Available: 15 pcs.
Total Price:
11.90 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9000 €
10 pcs.
10.7576 €
*incl. VAT plus shipping costs
Subject to prior sale
Lithium batteries, type Varta CR..A/AA.
Round cell type AA

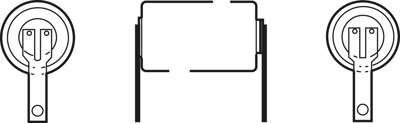

With 10 mm solder lugs, type CR..LF.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 25.1 mm | |
| diameter | 14.7 mm | |
| Usage | industrial applications | |
| Technology | lithium | |
| Nominal capacity | 950 mAh | |
| max. operating temperature | 75 °C | |
| Connection | soldering lug | |
| min. operating temperature | -55 °C | |
| other designation | 1/2 mignon | |
| IEC designation | 1/2R6 | |
| Version | round cell | |
| Rated voltage | 3 V | |
| Size | 1/2 AA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85065010 |
Compliance
| Property | Value |
|---|---|
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | not_relevant |
Signal word
| Property | Value |
|---|---|
| Information on dangerous goods |       |
