75630 310 053 | VARTA
Nickel-metal hydride rechargeable battery, 300 mA·h, 12 V, Battery pack, 75630 310 053
Order No.: 26A7145
EAN: 4099889435399
MPN:
75630 310 053
10/CP300H
Unit Price (€ / pc.)
41.4358 € *
Standard delivery time from the manufacturer is: On Request

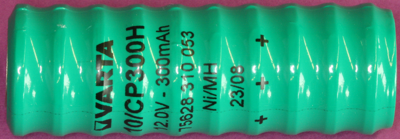

Ni/MH accumulators, type Varta CP300H.
Multiple version with cylindrical design, with 5 (6.0 V) or 10 (12 V) button cells type CP300H. Inserted in heatshrink tubing with ring solder lugs in flat arrangement on the surface that may also be used as surface contact if the user discards the solder connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Usage | general applications | |
| max. operating temperature | 65 °C | |
| min. operating temperature | -40 °C | |
| Height | 73 mm | |
| Technology | nickel metal hydride | |
| Nominal capacity | 300 mAh | |
| Weight | 11 g | |
| Rated voltage | 12 V | |
| Connection | 3 plug solder pins |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85075000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
Signal word
| Property | Value |
|---|---|
| Information on dangerous goods | ![]() |
