T60404-N4646-X400 | Vacuumschmelze
Current sensor, 25 A, -40 °C, 85 °C
Unit Price (€ / pc.)
32.8559 € *
Available: 45 pcs.
Total Price:
32.86 € *
Price list
Quantity
Price per unit*
1 pcs.
32.8559 €
5 pcs.
30.8924 €
30 pcs.
28.5243 €
60 pcs.
27.7270 €
120 pcs.
26.9416 €
*incl. VAT plus shipping costs
Subject to prior sale

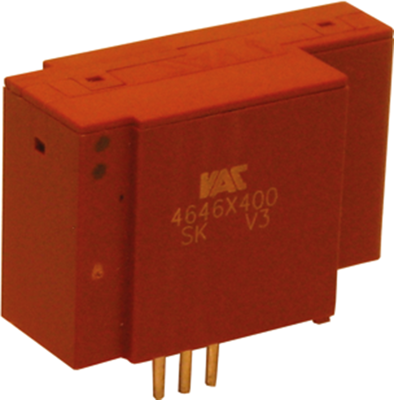

Current sensor, T60404-N4646-X400, Vacuumschmelze
Electrical isolation between power circuit and electronic circuit, for PCB mounting. Housing and materials are UL-listed; Ambient temperatures: –40 to +85 °C.
Size 33.25 x 14.45 x 21 mm, type T60404-N4646-X400.
For ±12/±15 V supply voltage.
Technical attributes (type, rated primary current rms, transformation ratio, max. tolerance): T60404-N4646-X400, 25 A, 1 to 3 : 1000, 0.5 %.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 21 mm | |
| min. operating temperature | -40 °C | |
| Rated current | 25 A | |
| max. operating temperature | 85 °C | |
| Version | closed control loop | |
| Frequency | 200 kHz | |
| Width | 14.45 mm | |
| Voltage | 5 V | |
| Length | 33.25 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | SK |
| Original Packaging | Tray with 30 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
