T60404-B4658-X030 | Vacuumschmelze
Pulse current transformer, 20 Hz, 300 Hz, 40 A
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.8199 € *
Available: 1 pcs.
Pulse current transformer, T60404-B4658-X030, Vacuumschmelze
Used for sensing and monitoring sine or square wave unipolar or bipolar currents. With electrical isolation; Frequency range: 20 Hz to 300 kHz (optimization by adaptation of the burden resistance).
Winding type transformer, T6040-B4658-X.
Technical attributes (type, max. primary current rms, max. secondary voltage time face integral, transformer ratio): T60404-B4658-X030, 40 A, 500 µVs, 1 : 200, 4.5 kV
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pulse current transformer | |
| Voltage | 300 V | |
| Frequency | 300 kHz | |
| Rated current | 40 A | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 85 °C | |

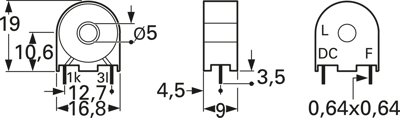

| Length | 16.8 mm | |
| Height | 19 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 448 pieces |
| Country of origin | CN |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
