IR0510 | VA Labs

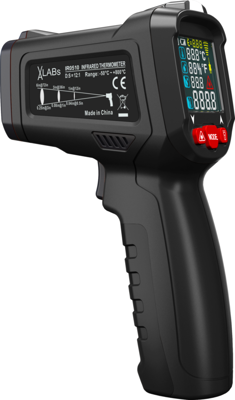

VA Labs infrared thermometer, IR0510
Infrared Thermometer, IR0510, VA Labs
The IR0510 infrared thermometer is a fully equipped instrument for measuring temperature and humidity. It enables the measurement of surface temperatures between -50 to +800 °C (fixed value emission adjustable: 0.1 to 1.0), ambient temperatures from -20 to +60°C and relative humidity. In addition, an external temperature sensor (type K) can be connected to the meter to detect surface temperatures by touch. The functional range is rounded off by a dew point calculation. The integrated multi-color display with black background ensures increased legibility and reliably displays the measurement results. In addition, individual minimum and maximum values can be set by the user. If these values are exceeded or not reached during the measurement, or if a mould potential is detected, this is indicated on the display and by the integrated alarm LED above the display.
| Filter | Property | Value |
|---|---|---|
| Distance/measuring point ratio | 12:1 | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 800 °C | |
| Accuracy | ±1.5 % | |
| Response Time | 500 ms | |
| Resolution | 0.1 °C | |
| Product type | infrared thermometer |
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 90251900 |
| Country of origin | CN |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
