VP 12 5K0 | TWK-ELEKTRONIK

Rotary position encoder, VP 12, 5K0, 0.2 W, 360°

Order No.: 75E405
EAN: 4099889455694
MPN:
VP 12 5K0
Series: VP 12
VP 12 5K0 TWK-ELEKTRONIK Motion Sensors

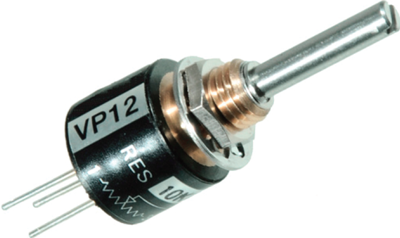

Image may differ
Unit Price (€ / pc.)
40.4005 € *
Available: 10 pcs.
Total Price:
40.40 € *
Price list
Quantity
Price per unit*
1 pcs.
40.4005 €
5 pcs.
37.9729 €
15 pcs.
36.5092 €
50 pcs.
34.9027 €
150 pcs.
33.4509 €
*incl. VAT plus shipping costs
Subject to prior sale

Rotary position encoder, VP 12 5K0, TWK-ELEKTRONIK

Virtually infinite resolution; Linearity: 2.0 %. Tolerance: ±20 %. Rating: 0.2 W (up to +55 °C). Wiper current: max. 1.0 mA. Dielectric strength: 500 V/1.0 min. Insulation resistance: greater than 1000 Mohm. Operating temperatures: -55 to +105 °C. Temperature coefficient: ±400. Electrical turning angle: 324° (±5°). Mechanical turning angle: 360° travel without stop. Design: plastic housing, 3.0 mm metal shaft, M6 x 0.75 center mounting stud, solder pins.

Type: 5K0

Technical specifications
Filter Property Value
Length 42 mm
Product type rotary position encoder
Logistics
Property Value
Country of origin JP
Customs tariff number 90318020
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
