VP 12 1K0 | TWK-ELEKTRONIK

Rotary position encoder, VP 12, 1K0, 0.2 W, 360°

Order No.: 75E400
EAN: 4099889455687
MPN:
VP 12 1K0
Series: VP 12

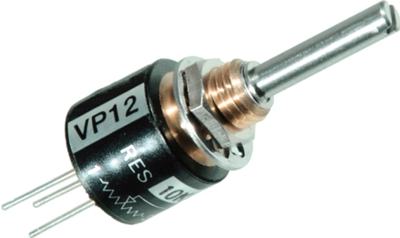

VP 12 1K0 TWK-ELEKTRONIK Motion Sensors
Image may differ
Unit Price (€ / pc.)
46.7432 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
467.43 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
46.7432 €

Rotary position encoder, VP 12 1K0, TWK-ELEKTRONIK

Virtually infinite resolution; Linearity: 2.0 %. Tolerance: ±20 %. Rating: 0.2 W (up to +55 °C). Wiper current: max. 1.0 mA. Dielectric strength: 500 V/1.0 min. Insulation resistance: greater than 1000 Mohm. Operating temperatures: -55 to +105 °C. Temperature coefficient: ±400. Electrical turning angle: 324° (±5°). Mechanical turning angle: 360° travel without stop. Design: plastic housing, 3.0 mm metal shaft, M6 x 0.75 center mounting stud, solder pins.

Type: 1K0

Technical specifications
Filter Property Value
Length 42 mm
Product type rotary position encoder
Logistics
Property Value
Country of origin JP
Customs tariff number 90318020
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
