SED 1438A/6,35 | TWK-ELEKTRONIK

Bellows coupling, for 6.35 mm shafts, SED 1438A/6,35

Order No.: 20H6062
EAN: 4099889347364
MPN:
SED 1438A/6,35

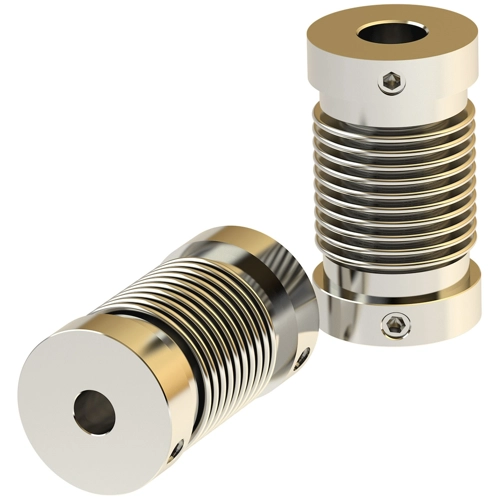

SED 1438A/6,35 TWK-ELEKTRONIK Equipment for Knobs Image 1
SED 1438A/6,35 TWK-ELEKTRONIK Equipment for Knobs Image 2
Image may differ
Unit Price (€ / pc.)
104.4582 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
104.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
104.4582 €

Bellows-type couplings for shafts, type SED.

Precision miniature design. Also for combinations with servo-drive motors etc. Highly flexible nickel version. Absolutely without play; Shaft retainers: hexagon socket screws. Shaft connection: same diameter on both ends. Continuous torque max.: 1.0/2.0/3.0/8.0 N/cm. Static radial offset max.: 0.19/0.4/0.54/0.72 mm. Static angular offset max.: 10.0/14.0/15.0/16.0 mm.

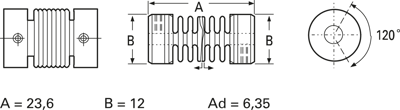

Technical attributes (type, for shaft diameter (SD), length (A), diameter (B)): 1438 A, SD 6.35 mm, A 23.6, B 12 mm

Technical specifications
Filter Property Value
Product type bellows coupling
Suitable for 6.35 mm shafts
Logistics
Property Value
Country of origin DE
Customs tariff number 90319000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
