60-0409-10003-000 | Tronser
Ceramic tubular trimmer, 0.4 pF, 3.5 pF, Air
Unit Price (€ / pc.)
23.5858 € *
Available: 89 pcs.
Leadtime: On Request **
Total Price:
23.59 € *
Price list
Quantity
Price per unit*
1 pcs.
23.5858 €
10 pcs.
22.2768 €
50 pcs.
20.9678 €
100 pcs.
19.6588 €
500 pcs.
18.3379 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ceramic tubular trimmers, type 60-0409-10003
with solder pins.
Rotors and stators: copper tin, gold-plated
Insulation ceramic: sintered ceramic AL2O3, glazed. Adjustment on rotor side. The torque range is adjusted by means of the six slotted and expanding sections of the rotor thread element
Torque: 0.3 to 2.0 N/cm
Detent torque: max. 2.0 N/cm
Test class: 55/085/56
Test voltage: 250 VDC
Quality: Q 5000/200 MHz
TC: +50 ±30
Operating temperatures: - 65 to +125 °C.

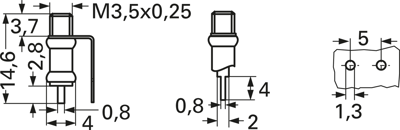

Technical specifications
| Rated voltage (DC) | 250 V | |
| diameter | 4 mm | |
| Height | 14.6 mm | |
| min. operating temperature | -65 °C | |
| Torque range | 0.003-0.02 Nm | |
| max. operating temperature | 125 °C | |
| Capacity range | 0.4 to 3.5 pF |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85323000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
