TSP 090-124 | TRACO POWER

Power supply, 24 to 28 VDC, 3.75 A, 90 W, TSP 090-124

Order No.: 25K5652
EAN: 7613441046761
MPN:
TSP 090-124
Series: TSP

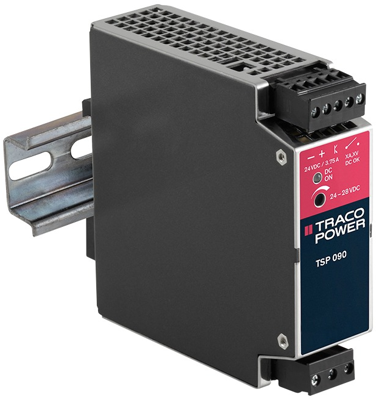

TSP 090-124 TRACO POWER DIN Rail Power Supplies
Image may differ
Unit Price (€ / pc.)
114.7160 € *
Available in 7 Days: 252 pcs. - if ordered today
Total Price:
114.72 € *
Price list
Quantity
Price per unit*
1 pcs.
114.7160 €
10 pcs.
103.2325 €
*incl. VAT plus shipping costs
Subject to prior sale

Power supplies, type Traco TSP.

For rail and wall mounting, in rugged metal enclosure, variable output voltage, low residual ripple, DC-OK-Signal, sustained short circuit-proof, overvoltage/thermal overload protection; Input voltage: TSP 070/090 85 to 263 VAC, TSP 140 to TSP 600 85 to 132/187 to 264 VAC 47 to 63 Hz. Load regulation: 0.5 %. Residual ripple: min. 100 mVpp. Interference suppression: EN 55011 class B, EN 55022 class B, EN 61000-6-3. Immunity to interference: EN 61000-6-2, EN 61204-3. Short-circuit protection: current limiting at Imax. Overvoltage protection: 20 V at 12 VDC, 35 V at 24 VDC, 63 V at 48 VDC. Efficiency: 87 %. Operating temperatures: –25 to +70 °C. Connections: pluggable screw terminals.

72 to 96 W output power, type TSP.

Dimensions: W 35, H 110, D 110 mm.

Technical attributes (type, output power, output voltage, output adjustment range, output current max): TSP 090-124, 90 W, 24 VDC, 24 to 28 VDC, 3.75 A

Technical specifications
Filter Property Value
efficiency 87 %
Output current 3.75 A
Width 35 mm
Power 90 W
Number of outputs 1
Input voltage AC 85-264 VAC
Height 110 mm
Depth 110 mm
Degree of protection (IP) IP20
Output voltage DC 24 to 28 VDC
Logistics
Property Value
Country of origin CN
Customs tariff number 85043180
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
