TIB 120-124 | TRACO POWER
Power supply, 23.5 to 28 VDC, 5 A, 120 W, TIB 120-124
Unit Price (€ / pc.)
135.9932 € *
Available in 7 Days: 102 pcs. - if ordered today

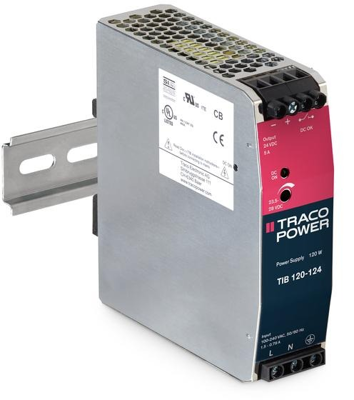

AC/DC Industrial Power Supply, TIB 120-124, TRACO POWER
TIB 120-124 is a DIN-rail power supply combines the most efficient circuit topology with optimized cost/performance ratio for industrial environments and for electrical control cabinets. They have a very high efficiency which allows a very slim package design.
Features
- Power Back immunity
- Short circuit and overload protection
- Adjustable output voltage
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 124.2 mm | |
| Height | 114.2 mm | |
| efficiency | 94 % | |
| Output current | 5 A | |
| Width | 36 mm | |
| Number of outputs | 1 | |
| Power | 120 W | |
| Output voltage DC | 23.5 to 28 VDC | |
| Input voltage AC | 85-264 VAC, 90-350 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
