TCL 060-148C | TRACO POWER
Power supply, 48 to 56 VDC, 1.25 A, 60 W, TCL 060-148C
Unit Price (€ / pc.)
106.1004 € *
Available in 10 days: 171 pcs. - if ordered today
Total Price:
106.10 € *
Price list
Quantity
Price per unit*
1 pcs.
106.1004 €
10 pcs.
95.4737 €
*incl. VAT plus shipping costs
Subject to prior sale

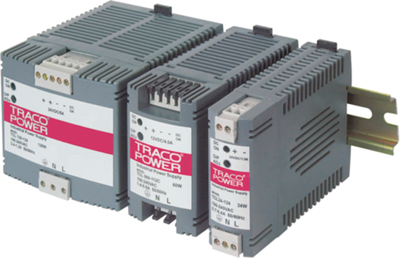

Industrial switching mode power supplies, type Traco TCL.
Suitable for parallel operation and snap-on mounting on DIN rails, compact plastic enclosure, short-circuit and surge protection; Residual ripple: <50 mVpp. Immunity to interference: EN 61000-6-2. Efficiency: 88 %. Operating temperatures: –10 to +70 °C.
Output power 60 W, type TCL.

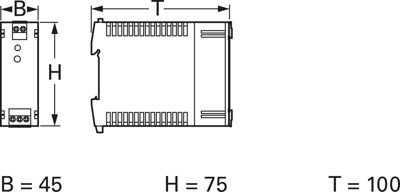

Input voltage range: 85 to 264 VAC, 85 to 375 VDC. Dimensions: W 45, H 75, D 100 mm. Weight: 265 g.
Technical attributes (type, output voltage/adjustment range, output current max., connection type (ST = plug-in screw terminals, CT = cage clamp terminals)): TCL 060-148C, 48 VDC/48 to 56 VDC, 1.25 A, CT
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 1.25 A | |
| Depth | 75 mm | |
| Number of outputs | 1 | |
| Degree of protection (IP) | IP20 | |
| Power | 60 W | |
| Output voltage DC | 48 to 56 VDC | |
| efficiency | 88 % | |
| Width | 45 mm | |
| Input voltage AC | 85-264 VAC, 85-375 VDC | |
| Height | 100 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
