TCL 060-148 | TRACO POWER

Power supply, 48 to 56 VDC, 1.25 A, 60 W, TCL 060-148

Order No.: 25K5563
EAN: 4099891283926
MPN:
TCL 060-148
Series: TCL

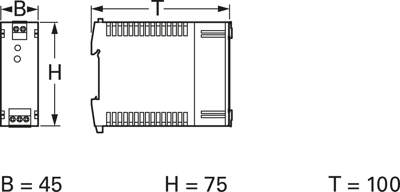

TCL 060-148 TRACO POWER DIN Rail Power Supplies Image 1

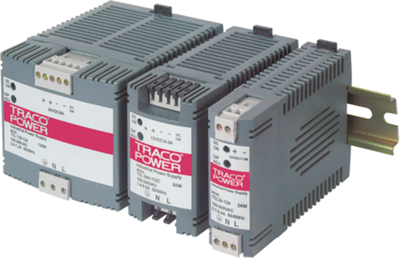

TCL 060-148 TRACO POWER DIN Rail Power Supplies Image 2
Image may differ
Unit Price (€ / pc.)
101.9830 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
101.98 € *
Price list
Quantity
Price per unit*
1 pcs.
101.9830 €
10 pcs.
91.7847 €
*incl. VAT plus shipping costs
Subject to prior sale

Industrial switching mode power supplies, type Traco TCL.

Suitable for parallel operation and snap-on mounting on DIN rails, compact plastic enclosure, short-circuit and surge protection

Output power 60 W, type TCL.

Technical specifications
Filter Property Value
Degree of protection (IP) IP20
Depth 75 mm
Output voltage DC 48 to 56 VDC
Output current 1.25 A
Width 45 mm
Height 100 mm
Power 60 W
Number of outputs 1
efficiency 88 %
Input voltage AC 85-264 VAC, 85-375 VDC
Logistics
Property Value
Country of origin CN
Customs tariff number 85043180
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
