TCL 060-124C | TRACO POWER
Power supply, 24 to 28 VDC, 2.5 A, 60 W, TCL 060-124C
Unit Price (€ / pc.)
99.8886 € *
Available in 10 days: 289 pcs. - if ordered today
Total Price:
99.89 € *
Price list
Quantity
Price per unit*
1 pcs.
99.8886 €
10 pcs.
89.8926 €
*incl. VAT plus shipping costs
Subject to prior sale

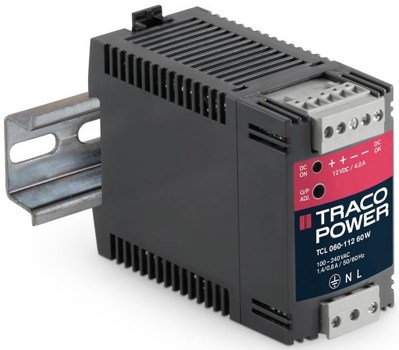

Industrial Power Supply, TCL 060-124C, TRACO POWER
The TCL 060-124C is a DIN-rail power supply with an excellent price/performance ratio. With tightly regulated output voltage and high immunity against electrical disturbances on the mains it provides a reliable power source for sensitive loads in industrial process controls, machine tools and other equipment exposed to a difficult industrial environment.
Features
- Low ripple and noise
- Short circuit and overload protection
- Adjustable output voltage
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 2.5 A | |
| Depth | 75 mm | |
| Number of outputs | 1 | |
| Degree of protection (IP) | IP20 | |
| Power | 60 W | |
| Output voltage DC | 24 to 28 VDC | |
| efficiency | 88 % | |
| Width | 45 mm | |
| Input voltage AC | 85-264 VAC, 85-375 VDC | |
| Height | 100 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
