TBLC 50-124 | TRACO POWER
Power supply, 24 to 28 VDC, 2.1 A, 50 W, TBLC 50-124
Unit Price (€ / pc.)
64.9859 € *
Available in 10 days: 162 pcs. - if ordered today
Total Price:
64.99 € *
Price list
Quantity
Price per unit*
1 pcs.
64.9859 €
10 pcs.
58.4885 €
*incl. VAT plus shipping costs
Subject to prior sale

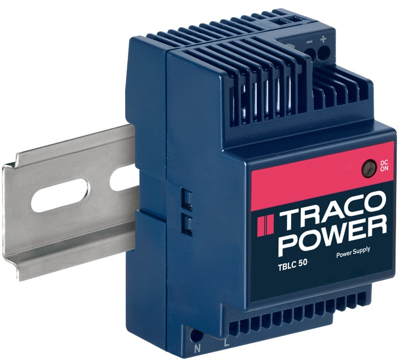

Switching power supply, TBLC 50-124, TRACO
These new DIN rail mounted power supplies are designed for industrial and residential applications. They are less expensive than the existing TBL series, with similar electrical specifications. They also fully comply with the new standby power and efficiency requirements (ECO standard). They are designed for connection as Class II devices, so that the protective earth connection is not required. Due to their small dimensions, they can be mounted in depth in flat racks. Their dimensions comply with the DIN 43 880 standard.
Features
- Low profile housing, module depth only 59.5 mm
- Suitable for mounting in building installation panels
- Low output ripple and spikes
- Full compliance with ECO standard
- Suitable for household appliances
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 59.5 mm | |
| Degree of protection (IP) | IP20 | |
| Output current | 2.1 A | |
| Width | 54 mm | |
| efficiency | 89 % | |
| Number of outputs | 1 | |
| Input voltage AC | 85-264 VAC | |
| Power | 50 W | |
| Output voltage DC | 24 to 28 VDC | |
| Depth | 89.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
