TBLC 25-124 | TRACO POWER
Power supply, 24 to 28 VDC, 1.05 A, 25 W, TBLC 25-124
Unit Price (€ / pc.)
54.8233 € *
Available in 10 days: 182 pcs. - if ordered today
Total Price:
54.82 € *
Price list
Quantity
Price per unit*
1 pcs.
54.8233 €
10 pcs.
49.3374 €
*incl. VAT plus shipping costs
Subject to prior sale

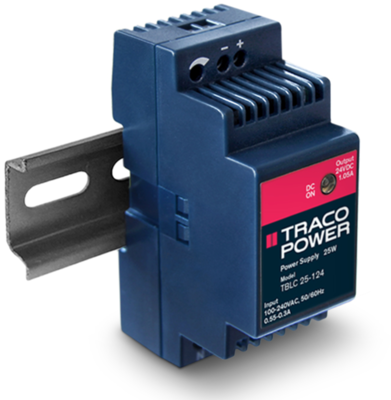

Power supply, TBLC 25-124, Traco
This power supply is designed for industrial and residential applications. It is intended for connection as a Class II device, so the protective earth connection is not required. The device can be mounted in shallow racks due to its small dimensions in depth.
Features
- High power density in flat housing, module depth < 55 mm
- Suitable for installation in domestic installation panels
- Very high efficiency and low standby power
- Low output ripple and spikes
- For distributed power
- Operating temperature range: -25°C to +70°C
Applications
- Household applications
- Industrial application
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 59.5 mm | |
| Degree of protection (IP) | IP20 | |
| Output current | 1.05 A | |
| Width | 36 mm | |
| efficiency | 87 % | |
| Number of outputs | 1 | |
| Input voltage AC | 85-264 VAC | |
| Power | 25 W | |
| Output voltage DC | 24 to 28 VDC | |
| Depth | 89.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
