TZL 060-2412 | TRACO POWER
DC converter, 18-36 VDC, 60 W, 1 output, 12 VDC, 80 % efficiency, TZL 060-2412
Unit Price (€ / pc.)
93.9148 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
93.91 € *
Price list
Quantity
Price per unit*
1 pcs.
93.9148 €
10 pcs.
84.5138 €
*incl. VAT plus shipping costs
Subject to prior sale

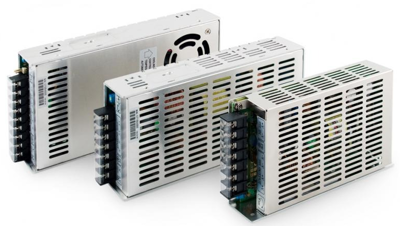

DC/DC converters, Traco TZL 060-2412
This range of boxed DC/DC converter are designed for all applications, where high reliability and long lifetime are important. They provide excellent electric specifications and full compliance to the European EMC and low voltage directive. International safety approvals qualify these converter for worldwide use. With their low profile case and screw terminal block they are easy to install in any equipment.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 31.8 mm | |
| Power | 60 W | |
| Isolation voltage | 1.5 kV | |
| Output voltage DC | 12 VDC | |
| efficiency | 80 % | |
| Output current | 5 A | |
| Number of outputs | 1 | |
| Length | 159 mm | |
| Width | 95 mm | |
| Input voltage AC | 18-36 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
