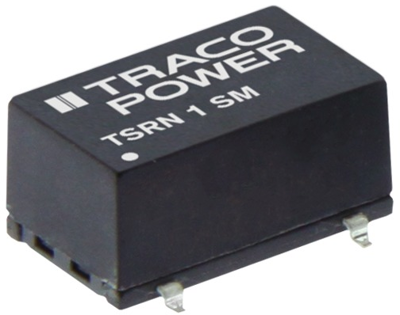

TSRN 1-2433SM | TRACO POWER
DC converter, 4.6-42 VDC, 3 W, 1 output, 3.3 VDC, 88 % efficiency, TSRN 1-2433SM
DC/DC converters, Traco TSRN 1-2433SM
The new TSRN-1SM series are step-down non–isolated switching regulators in compact SMD package. They are an ideal solution to replace inefficient linear regulators. The high efficiency up to 95 % allows full load operation up to +55°C (+85°C with derating) ambient temperature without the need of forced air cooling. The TSRN-1SN switching regulators provide other significant features over linear regulators, i.e. better output accuracy (±2 %), lower standby current of ~4 mA and no requirement of external capacitors. They are suitable for positive or negative output circuits and offer a trim input for output voltage adjustment. The high efficiency, low standby power consumption and remote On/Off function make these regulators an ideal solution for energy sensitive applications.
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 3.3 VDC | |
| Power | 3 W | |
| efficiency | 88 % | |
| Length | 15.2 mm | |
| Height | 7.3 mm | |
| Input voltage AC | 4.6-42 VDC | |
| Width | 9.3 mm | |
| Number of outputs | 1 | |
| Output current | 1 A | |
| Design | SMD |
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
