TSRN 1-2415A | TRACO POWER
DC converter, 4.6-42 VDC, 2 W, 1 output, 1.5 VDC, 77 % efficiency, TSRN 1-2415A
Unit Price (€ / pc.)
13.1614 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
13.16 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1614 €
10 pcs.
11.8524 €
*incl. VAT plus shipping costs
Subject to prior sale

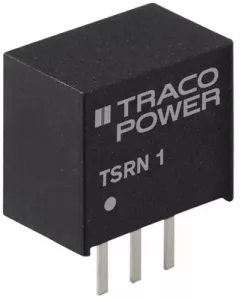

DC/DC converters, Traco TSRN 1-2415A
The new TSRN-1 series step-down switching regulators are drop-in replacement for inefficient 78xx linear regulators. A high efficiency up to 95 % allows full load operation up to +70°C (+85°C with derating) ambient temperature without the need of any heat-sink or forced air cooling. The TSRN-1 switching regulators provide other significant features over linear regulators, i.e. better output accuracy (±2 %), lower standby current of ~2 mA and no requirement of external capacitors. They are suitable for positive or negative output circuits. The high efficiency and low standby power consumption make these regulators an ideal solution for energy sensitive applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 1.5 VDC | |
| Power | 2 W | |
| efficiency | 77 % | |
| Length | 11.7 mm | |
| Height | 7.5 mm | |
| Input voltage AC | 4.6-42 VDC | |
| Width | 10.2 mm | |
| Number of outputs | 1 | |
| Output current | 1 A | |
| Design | SIP3 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
