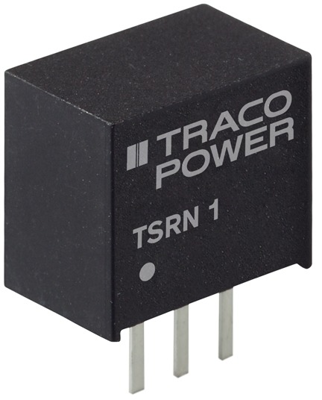

TSRN 1-24150A | TRACO POWER
DC converter, 16.5-36 VDC, 15 W, 1 output, 15 VDC, 95 % efficiency, TSRN 1-24150A
Unit Price (€ / pc.)
13.8040 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
13.80 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8040 €
10 pcs.
12.4117 €
*incl. VAT plus shipping costs
Subject to prior sale
DC/DC converters, Traco TSRN 1-24150A
The new TSRN-1 series step-down switching regulators are drop-in replacement for inefficient 78xx linear regulators. A high efficiency up to 95 % allows full load operation up to +70°C (+85°C with derating) ambient temperature without the need of any heat-sink or forced air cooling. The TSRN-1 switching regulators provide other significant features over linear regulators, i.e. better output accuracy (±2 %), lower standby current of ~2 mA and no requirement of external capacitors. They are suitable for positive or negative output circuits. The high efficiency and low standby power consumption make these regulators an ideal solution for energy sensitive applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 15 VDC | |
| Output current | 1 A | |
| Width | 7.5 mm | |
| Height | 10.2 mm | |
| Power | 15 W | |
| Length | 11.7 mm | |
| Design | SIP3 | |
| Number of outputs | 1 | |
| efficiency | 95 % | |
| Input voltage AC | 16.5-36 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
