TSR 3-24120N | TRACO POWER

Step-down switching controller, 15-36 VDC, 1 output, 12 VDC, 94 % efficiency, TSR 3-24120N

Order No.: 35C1976
EAN: 7613441076775
MPN:
TSR 3-24120N
Series: TSR 3N
TSR 3-24120N TRACO POWER DC/DC Converters

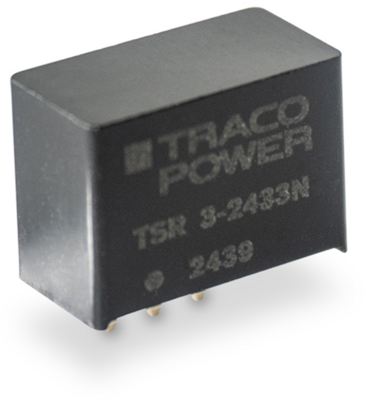

Image may differ
Unit Price (€ / pc.)
8.5442 € *
Next delivery: 50 pcs. on 2025-08-29
Total Price:
8.54 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5442 €
5 pcs.
8.1158 €
10 pcs.
7.7112 €
50 pcs.
7.3304 €
*incl. VAT plus shipping costs
Subject to prior sale

Non-Isolated DC/DC Converter, TSR 3-24120N, TRACO POWER

The TSR 3N is a 3 Amp step-down switching regulator series and a drop-in replacement for any TO-220 package linear regulators. It comes in a compact SIP-3 plastic package and complements our new generation of POL converters focusing strongly on a cost-efficient design while also improving on critical electrical specifications. The Input ranges from 4.6 to 36 VDC and output voltages are available between 1.2 and 15VDC. Depending on the model, the efficient design allows full load operation up to +90°C ambient temperature (at nominal Vin) without the need of any heat sink or forced cooling. The TSR 3N series provides other significant features like short circuit protection, current limitation and under voltage lockout. Overall, it offers a broad application range in many environments and is especially suited for high volume projects where the series will help to reduce production cost by delivering not only a highly cost efficient but also reliable solution.

Features

  • Highly cost-efficient design
  • Excellent thermal capabilities
  • Efficiency up to 95%
  • Short circuit protection, current limitation and under voltage lockout features
  • Excellent line / load regulation
Technical specifications
Input voltage AC 15-36 VDC
Design SIP3
Output current 3 A
efficiency 94 %
Height 10.2 mm
Number of outputs 1
Output voltage DC 12 VDC
Width 7.6 mm
Length 14 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
