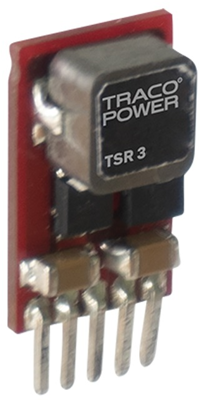

TSR 3-0533 | TRACO POWER
DC converter, 2.5-5.5 VDC, 10 W, 1 output, 0.6-3.3 VDC, 95 % efficiency, TSR 3-0533
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
28.0483 € *
Available in 7 Days: 40 pcs. - if ordered today
Total Price:
28.05 € *
Price list
Quantity
Price per unit*
1 pcs.
28.0483 €
10 pcs.
25.2518 €
*incl. VAT plus shipping costs
Subject to prior sale
DC converters, type Traco TSR.
Step-down switching mode regulator, suitable for POL applications, open-frame design with low housing, sustained short circuit-proof, low residual ripple, external On/Off; Output current: 3.0 A. Adjustment tolerance: ±2.0 %. Voltage offset at startup: 1.0 %. Operating temperatures: –40 to +85 °C. MTBF: min. 1.63 million hours.
Technical attributes (type, input voltage, output voltage, efficiency, residual ripple (pk-pk)): TSR 3-0533, 2.5 to 5.5 V, 0.6 to 3.3 V, 95 %, 30 mV
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 3 A | |
| Output voltage DC | 0.6-3.3 VDC | |
| Input voltage AC | 2.5-5.5 VDC | |
| Power | 10 W | |
| efficiency | 95 % | |
| Design | SIP5 | |
| Length | 9.4 mm | |
| Width | 6.2 mm | |
| Height | 15.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
