TSR 2-2418 | TRACO POWER

DC converter, 4.6-36 VDC, 3.6 W, 1 output, 1.8 VDC, 87 % efficiency, TSR 2-2418

Order No.: 34C1164
EAN: 4099891337087
MPN:
TSR 2-2418
Series: TSR 2
TSR 2-2418 TRACO POWER DC/DC Converters Image 1

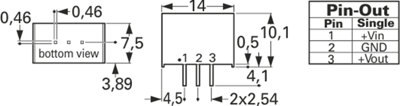

TSR 2-2418 TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
13.9944 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
13.99 € *
Price list
Quantity
Price per unit*
1 pcs.
13.9944 €
10 pcs.
12.6021 €
*incl. VAT plus shipping costs
Subject to prior sale

DC converters, type Traco TSR-1.

Step-down switching mode regulator, suitable as replacement for ineffective 78xx linear controllers. SIL package, mates TO-220 connecting surface, pin-compatible with LMxx linear controllers, built-in filter capacitor, sustained short circuit-proof; Output current: max. 1.0 A. Reflected ripple current: 150 mA. Input current at no-load operation: max. 1.0 mA. Control error on input fluctuation/load fluctuation (10 to 100 %): 0.2/0.4 %. Residual ripple: 50 mVpp (1.5 to 6.5 VDC), 75 mVpp (9.0 to 15 VDC). On delay: 2.0 ms. Operating temperatures: –40 to +85 °C.

Technical attributes (type, rated input voltage, output voltage, efficiency a Vin min./Vin max): TSR 1-2490, 12 to 32 VDC, 9.0 VDC, 95/90 %

Technical specifications
Number of outputs 1
Output current 2 A
Output voltage DC 1.8 VDC
Input voltage AC 4.6-36 VDC
Power 3.6 W
efficiency 87 %
Design SIP3
Isolation voltage 1.6 kV
Length 14 mm
Width 7.5 mm
Height 10.1 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
