TSR 2-0525 | TRACO POWER

DC converter, 3.8-5.5 VDC, 1 output, 2.5 VDC, 95 % efficiency, TSR 2-0525

Order No.: 34C1158
EAN: 7613441047539
MPN:
TSR 2-0525
Series: TSR 2

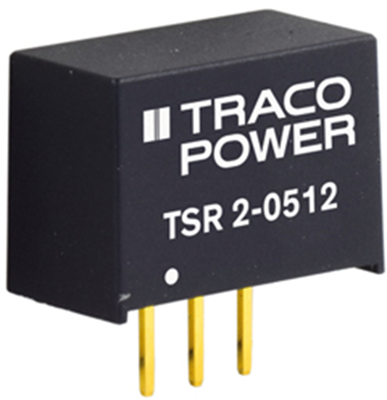

TSR 2-0525 TRACO POWER DC/DC Converters Image 1
TSR 2-0525 TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
12.2927 € *
Available in 7 Days: 100 pcs. - if ordered today
Total Price:
12.29 € *
Price list
Quantity
Price per unit*
1 pcs.
12.2927 €
10 pcs.
11.0670 €
*incl. VAT plus shipping costs
Subject to prior sale

DC converters, type Traco TSR-1.

Step-down switching mode regulator, suitable as replacement for ineffective 78xx linear controllers. SIL package, mates TO-220 connecting surface, pin-compatible with LMxx linear controllers, built-in filter capacitor, sustained short circuit-proof; Output current: max. 1.0 A. Reflected ripple current: 150 mA. Input current at no-load operation: max. 1.0 mA. Control error on input fluctuation/load fluctuation (10 to 100 %): 0.2/0.4 %. Residual ripple: 50 mVpp (1.5 to 6.5 VDC), 75 mVpp (9.0 to 15 VDC). On delay: 2.0 ms. Operating temperatures: –40 to +85 °C.

Technical attributes (type, rated input voltage, output voltage, efficiency a Vin min./Vin max): TSR 1-2433, 4.75 to 32 VDC, 3.3 VDC, 91/78 %

Technical specifications
Filter Property Value
Width 7.5 mm
Length 14 mm
Design SIP3
Input voltage AC 3.8-5.5 VDC
Isolation voltage 1.6 kV
Output current 2 A
efficiency 95 %
Number of outputs 1
Height 10.1 mm
Output voltage DC 2.5 VDC
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
