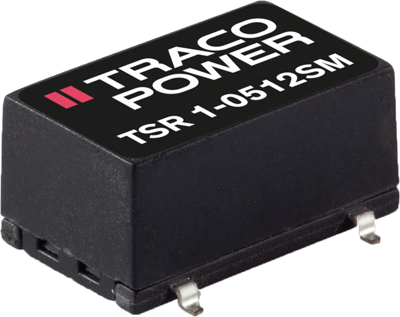

TSR 1-2415SM | TRACO POWER
DC converter, 4.6-36 VDC, 2 W, 1 output, 1.5 VDC, 79 % efficiency, TSR 1-2415SM
Unit Price (€ / pc.)
10.9480 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
10.95 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9480 €
10 pcs.
9.8413 €
*incl. VAT plus shipping costs
Subject to prior sale
DC/DC converters, Traco TSR 1-2415SM
The TSR-1SM series models of step-down switching regulators have a high efficiency up to 96 % which allows full load operation up to +65°C ambient temperature without the need of any heat transmission layer. Excellent output voltage accuracy (±2%) and low standby current (~1 A) are features that distinguish these switching regulators from linear regulators.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 1.5 VDC | |
| Output current | 1 A | |
| Width | 9.3 mm | |
| Height | 7.6 mm | |
| Power | 2 W | |
| Length | 15.2 mm | |
| Design | SMD | |
| Number of outputs | 1 | |
| efficiency | 79 % | |
| Input voltage AC | 4.6-36 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
