TSR 0.5-2415 | TRACO POWER
DC converter, 4.75-32 VDC, 1 W, 1 output, 15 VDC, 73 % efficiency, TSR 0.5-2415
Unit Price (€ / pc.)
6.7116 € *
Available in 7 Days: 120 pcs. - if ordered today
Total Price:
6.71 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7116 €
10 pcs.
6.0571 €
*incl. VAT plus shipping costs
Subject to prior sale

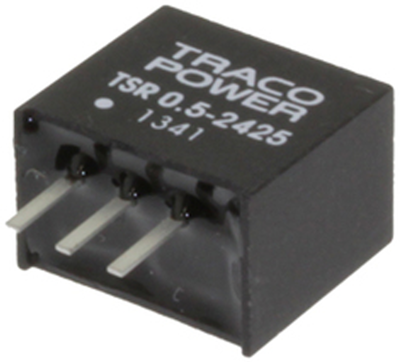

DC/DC converters, Traco TSR 0.5-2415
TSR-0.5 is a series of step-down non–isolated switching regulators in compact SIP package. These converters are an ideal drop-in replacement to LM78 linear regulators when energy efficiency is a parameter of the design. The high efficiency up to 97 % allows full load operation up to +80°C (+90°C with 50% load) ambient temperature without the need of forced aircooling. Excellent output voltage accuracy and low standby current are other features thatdistinguish switching regulators from linear regulators.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 15 VDC | |
| Output current | 500 mA | |
| Width | 7.6 mm | |
| Number of outputs | 1 | |
| Design | SIP3 | |
| Height | 10.2 mm | |
| Power | 1 W | |
| efficiency | 73 % | |
| Length | 11.5 mm | |
| Input voltage AC | 4.75-32 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
