TSN 1-2460 | TRACO POWER
DC converter, -8-32 VDC, 6 W, 1 output, -6 VDC, 86.5 % efficiency, TSN 1-2460
Unit Price (€ / pc.)
15.7437 € *
Available in 7 Days: 50 pcs. - if ordered today
Total Price:
15.74 € *
Price list
Quantity
Price per unit*
1 pcs.
15.7437 €
10 pcs.
14.1491 €
*incl. VAT plus shipping costs
Subject to prior sale

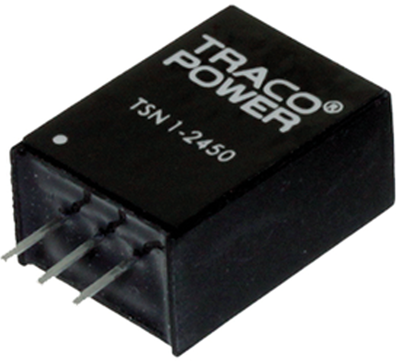

DC/DC Converter, TSN 1-2460, TRACO
The new TSN-1 series step-down switching regulators are a drop-in replacement for the inefficient 79xx series linear regulators. A high efficiency of up to 96% enables full load operation up to an ambient temperature of +70°C (+85°C with derating) without the need for a heat sink or forced air cooling.
Features
- Non isolated converter for negative output
- Small size and low profile
- No heat sink required
- High efficiency up to 96
- Operating temperature range -40°C to +85°C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 16.5 mm | |
| Width | 7.5 mm | |
| Power | 6 W | |
| Length | 11.7 mm | |
| efficiency | 86.5 % | |
| Design | SIP3 | |
| Output current | -1 A | |
| Output voltage DC | -6 VDC | |
| Number of outputs | 1 | |
| Input voltage AC | -8-32 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
