TSN 1-2450A | TRACO POWER
DC converter, -7-32 VDC, 5 W, 1 output, -5 VDC, 84.5 % efficiency, TSN 1-2450A
Unit Price (€ / pc.)
14.9345 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.93 € *
Price list
Quantity
Price per unit*
1 pcs.
14.9345 €
10 pcs.
13.4351 €
*incl. VAT plus shipping costs
Subject to prior sale

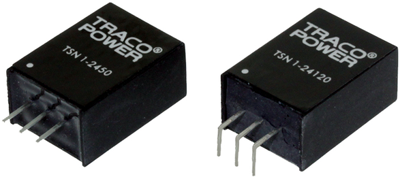

DC/DC converters, Traco TSN 1-2450A
The new TSN-1 series step-down switching regulators are drop-in replacement for inefficient LM79xx linear regulators. A high efficiency up to 96 % allows full load operation up to +70°C (+85°C with derating) ambient temperature without the need of any heat-sink or forced air cooling. The TSN-1 switching regulators provide other significant features over linear regulators, i.e. better output accuracy (±2 %), lower standby current of ~2 mA and no requirement of external capacitors. They are suitable for negative output circuits. The high efficiency and low standby power consumption make these regulators an ideal solution for energy sensitive applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| efficiency | 84.5 % | |
| Power | 5 W | |
| Height | 7.5 mm | |
| Length | 16.5 mm | |
| Output current | -1 A | |
| Number of outputs | 1 | |
| Input voltage AC | -7-32 VDC | |
| Output voltage DC | -5 VDC | |
| Design | SIP3 | |
| Width | 11.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
