TRA 3-1219 | TRACO POWER
DC converter, 10.8-13.2 VDC, 3 W, 1 output, 9 VDC, 87.5 % efficiency, TRA 3-1219
Unit Price (€ / pc.)
12.2094 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
12.21 € *
Price list
Quantity
Price per unit*
1 pcs.
12.2094 €
10 pcs.
10.9837 €
*incl. VAT plus shipping costs
Subject to prior sale

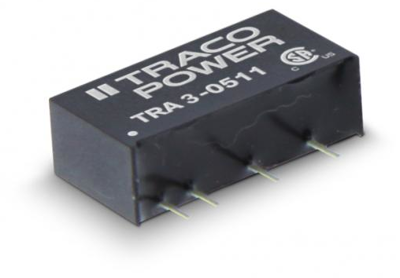

DC/DC converters, Traco TRA 3-1219
The TRA 3 series are miniature, I/O-isolated 3W DC/DC-converters with a semi load regulation. They are the ideal solution to power drivers and circuits where unregulated DC/DC converters do not meet the input voltage range at load change
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 333 mA | |
| Output voltage DC | 9 VDC | |
| Input voltage AC | 10.8-13.2 VDC | |
| Power | 3 W | |
| efficiency | 87.5 % | |
| Design | SIP6 | |
| Isolation voltage | 1 kV | |
| Length | 19.5 mm | |
| Width | 6.1 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
