TON 15-4810WI | TRACO POWER

DC converter, 18-75 VDC, 13.2 W, 1 output, 3.3 VDC, 85 % efficiency, TON 15-4810WI

Order No.: 32C2630
EAN: 7613441038643
MPN:
TON 15-4810WI
Series: TON 15WI
TON 15-4810WI TRACO POWER DC/DC Converters

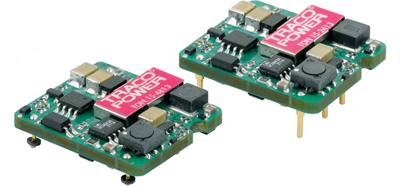

Image may differ
Unit Price (€ / pc.)
53.8237 € *
Available in 7 Days: 10 pcs. - if ordered today
Total Price:
53.82 € *
Price list
Quantity
Price per unit*
1 pcs.
53.8237 €
10 pcs.
48.4449 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC converters, Traco TON 15-4810WI

The TON-15WI series is a generation of high performance 15W dc-dc converters with ultra-wide input voltage range and precisely regulated output voltage. The ultra compact open frame design with industry standard pin-out provides the designer now a 50% smaller, cost efficient alternative to existing 10 to 15W converters in the market. Built-in filters for both input and output minimize the need for external filtering. Further features include remote On/Off, output voltage trimming, over voltage protection and short circuit protection. Typical applications are distributed power systems, instrumentation and industrial electronics, everywhere where space on the PCB is a critical factor.

Technical specifications
Filter Property Value
Number of outputs 1
Output current 4 A
Output voltage DC 3.3 VDC
Input voltage AC 18-75 VDC
Power 13.2 W
efficiency 85 %
Design DIP6
Isolation voltage 2.25 kV
Length 27.9 mm
Width 23.9 mm
Height 8.5 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
Substance description Lead
