TMV 2-2409DHI | TRACO POWER
DC converter, 21.6-26.4 VDC, 2 W, 2 outputs, ±9 VDC, 81 % efficiency, TMV 2-2409DHI
Unit Price (€ / pc.)
12.8282 € *
Available in 7 Days: 470 pcs. - if ordered today
Total Price:
12.83 € *
Price list
Quantity
Price per unit*
1 pcs.
12.8282 €
10 pcs.
11.5430 €
*incl. VAT plus shipping costs
Subject to prior sale

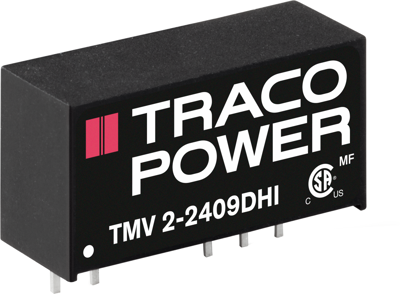

DC/DC converters, Traco TMV 2-2409DHI
The TMV-2HI series is a range of 2 Watt non regulated dc/dc-converters with very high I/O-isolation of 5700 Vpk. They come in a compact SIP-7 package.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 112 mA | |
| Output voltage DC | ±9 VDC | |
| Input voltage AC | 21.6-26.4 VDC | |
| Power | 2 W | |
| efficiency | 81 % | |
| Design | SIP7 | |
| Isolation voltage | 5.2 kV | |
| Length | 19.5 mm | |
| Width | 7.5 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
