TMV 1212D | TRACO POWER

DC converter, 10.8-13.2 VDC, 1 W, 2 outputs, ±12 VDC, 74 % efficiency, TMV 1212D

Order No.: 32C2520
EAN: 7613441036465
MPN:
TMV 1212D
Series: TMV
TMV 1212D TRACO POWER DC/DC Converters

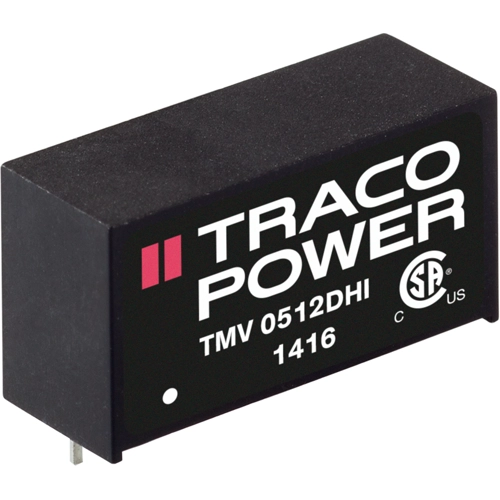

Image may differ
Unit Price (€ / pc.)
6.1523 € *
Available in 7 Days: 1,040 pcs. - if ordered today
Total Price:
6.15 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1523 €
10 pcs.
5.5335 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC converters, Traco TMV 1212D

The TMV series are miniature, isolated 1 W DC/DC-converters with high isolation in a single-in-line package (SIP). Requiring only 1.2 cm² board space they offer the ideal solution in many space critical applications for board level power distribution. The use of SMD-technology makes it possible to offer a product with high performance at low cost

Technical specifications
Filter Property Value
Number of outputs 2
Output current 40 mA
Output voltage DC ±12 VDC
Input voltage AC 10.8-13.2 VDC
Power 1 W
efficiency 74 %
Design SIP7
Isolation voltage 3 kV
Length 22 mm
Width 7.5 mm
Height 12.5 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
