TMR 9-4819WI | TRACO POWER

DC converter, 18-75 VDC, 9 W, 1 output, 9 VDC, 89 % efficiency, TMR 9-4819WI

Order No.: 34C1022
EAN: 4099891336325
MPN:
TMR 9-4819WI
Series: TMR 9WI
TMR 9-4819WI TRACO POWER DC/DC Converters Image 1
TMR 9-4819WI TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
43.3279 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
43.33 € *
Price list
Quantity
Price per unit*
1 pcs.
43.3279 €
10 pcs.
39.0082 €
*incl. VAT plus shipping costs
Subject to prior sale

Mit Eingangsspannung 18 bis 75 VDC.

Technical attributes (type, input voltage range, output voltage/current, typical efficiency): TMR 9-4819WI, 9,0 VDC/1,0 A, 86%, 50 mVpp

Technical specifications
Filter Property Value
Number of outputs 1
Output current 1 A
Output voltage DC 9 VDC
Input voltage AC 18-75 VDC
Power 9 W
efficiency 89 %

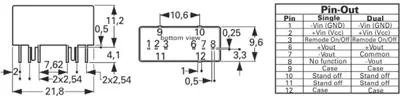

Design SIP8
Isolation voltage 1.6 kV
Length 21.8 mm
Width 9.6 mm
Height 11.2 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
