TMR 9-1223 | TRACO POWER
DC converter, 9-18 VDC, 9 W, 2 outputs, ±15 VDC, 89 % efficiency, TMR 9-1223
Unit Price (€ / pc.)
40.9717 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
40.97 € *
Price list
Quantity
Price per unit*
1 pcs.
40.9717 €
10 pcs.
36.8781 €
*incl. VAT plus shipping costs
Subject to prior sale

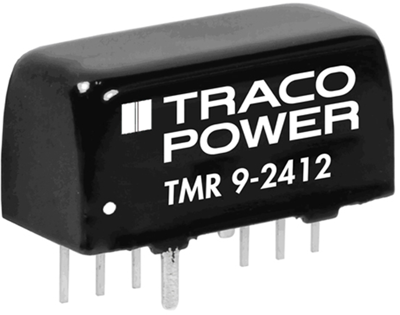

DC/DC converters, Traco TMR 9-1223
TMR 9 is a series of highest power density dc/dc converters with isolated and regulated output voltage in SIP-8 package. These 9 Watt converters reliably operate up to 60°C environment temperature at full load or up to 85°C with a 50% load de-rating. With 1500 VDC I/O-isolation voltage, external On/Off, short current protection, no minimum load requirement and EMC according EN55022 class A, they cover a wide range of space critical application.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 300 mA | |
| Output voltage DC | ±15 VDC | |
| Input voltage AC | 9-18 VDC | |
| Power | 9 W | |
| efficiency | 89 % | |
| Design | SIP8 | |
| Isolation voltage | 1.6 kV | |
| Length | 21.8 mm | |
| Width | 9.6 mm | |
| Height | 11.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
