TMR 4-2423 | TRACO POWER

DC converter, 18-36 VDC, 4 W, 2 outputs, ±15 VDC, 85 % efficiency, TMR 4-2423

Order No.: 35C1648
EAN: 7613441063133
MPN:
TMR 4-2423
Series: TMR 4
TMR 4-2423 TRACO POWER DC/DC Converters

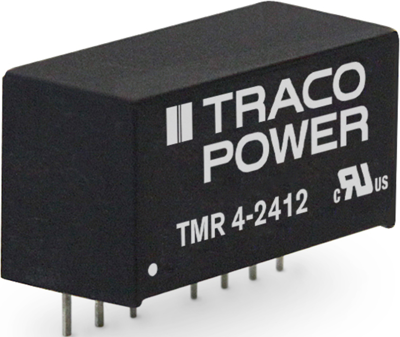

Image may differ
Unit Price (€ / pc.)
15.9460 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
15.95 € *
Price list
Quantity
Price per unit*
1 pcs.
15.9460 €
10 pcs.
14.3633 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC Converter, TMR 4-2423, TRACO POWER

The TMR 4 is a regulated 4 Watt DC/DC converter with 2:1 input voltage range. It comes in a compact SIP-8 package featuring single and dual output models, I/O isolation voltage of 1600 VDC and protection against short-circuit and over load. Being a 4 Watt converter this acts as an excellent gap closer between the more common 3 & 6 Watt converter. It offers a cost-efficient alternative to 5 and 6 Watt converter in applications where a 3 Watt converter would operate at the absolute technical limits (e.g. output power). The intelligent design provides efficiencies up to 87% and a temperature range of -40°C to +70°C without derating which enables an unrestricted use of this converter in applications with demanding temperature requirements. Additionally, the integrated remote On/Off function offers a convenient way to control your application. Certified according to the latest IEC/EN/UL 62368-1 industrial standard the TMR 4 is designed to deliver a high quality, cost efficient and compact solution for many applications.

Features

  • Wide 2:1 input voltage range
  • High efficiency up to 87%
  • Protection against short-circuit and over load
  • Fully regulated outputs
  • Remote On/Off control
Technical specifications
Number of outputs 2
Output current 133 mA
Output voltage DC ±15 VDC
Input voltage AC 18-36 VDC
Power 4 W
efficiency 85 %
Design SIP8
Isolation voltage 1.6 kV
Length 21.8 mm
Width 9.3 mm
Height 11.2 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
