TMR 2-1211E | TRACO POWER

DC converter, 9-18 VDC, 2 W, 1 output, 5 VDC, 77 % efficiency, TMR 2-1211E

Order No.: 26K2278
EAN: 7613441031545
MPN:
TMR 2-1211E
Series: TMR 2E

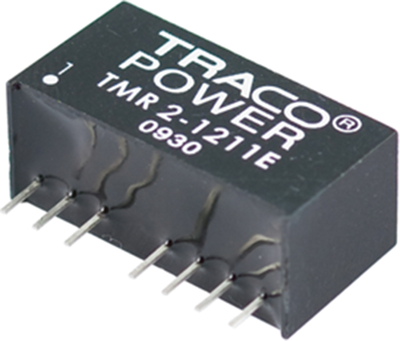

TMR 2-1211E TRACO POWER DC/DC Converters Image 1

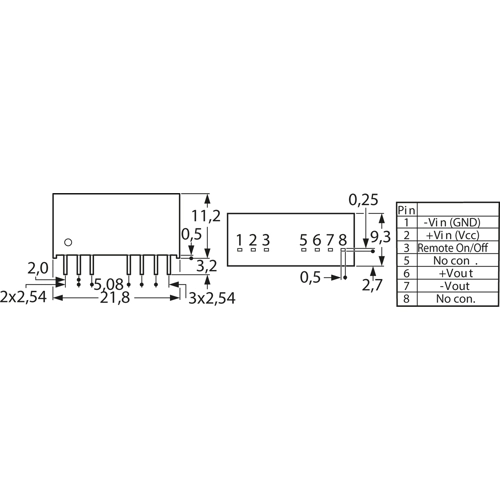

TMR 2-1211E TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
12.7330 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
12.73 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7330 €
10 pcs.
11.4597 €
*incl. VAT plus shipping costs
Subject to prior sale

DC converters, type Traco TMR 2-..E.

2.0 W converter in SIL-8 package; Features: 2 :1 input ranges, regulated output voltage, sustained short circuit-proof, external On/Off. Control error: on input fluctuation max. 0.5 %, on load fluctuation max. 0.75 %. Residual ripple; max. 50 mVpp. Operating temperatures: –40 to +85 °C. I/O test voltage 1000 VDC. Insulation resistance: min. 1.0 Gohm. MTBF (at +25 °C): min. 1.0 million h.

Input voltage range from 9.0 to 18 VDC.

Technical attributes (type, output voltage, output current, efficiency): TMR 2-1211E, 5.0 VDC, 400 mA, 77 %

Technical specifications
Filter Property Value
Number of outputs 1
Output current 400 mA
Output voltage DC 5 VDC
Input voltage AC 9-18 VDC
Power 2 W
efficiency 77 %
Design SIP8
Isolation voltage 1 kV
Length 21.8 mm
Width 9.3 mm
Height 11.2 mm
Logistics
Property Value
Customs tariff number 85044095
Country of origin TW
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
