TMR 2-0511E | TRACO POWER

DC converter, 4.5-9 VDC, 2 W, 1 output, 5 VDC, 73 % efficiency, TMR 2-0511E

Order No.: 26K2272
EAN: 4099891298975
MPN:
TMR 2-0511E
Series: TMR 2E

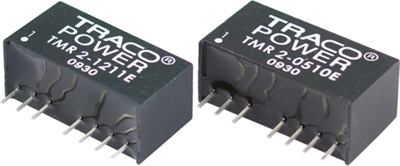

TMR 2-0511E TRACO POWER DC/DC Converters Image 1
TMR 2-0511E TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
12.7330 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
12.73 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7330 €
10 pcs.
11.4597 €
*incl. VAT plus shipping costs
Subject to prior sale

DC converters, type Traco TMR 2-..E.

2.0 W converter in SIL-8 package; Features: 2 :1 input ranges, regulated output voltage, sustained short circuit-proof, external On/Off. Control error: on input fluctuation max. 0.5 %, on load fluctuation max. 0.75 %. Residual ripple; max. 50 mVpp. Operating temperatures: –40 to +85 °C. I/O test voltage 1000 VDC. Insulation resistance: min. 1.0 Gohm. MTBF (at +25 °C): min. 1.0 million h.

Input voltage range from 4.5 to 9.0 VDC.

Technical attributes (type, output voltage, output current, efficiency): TMR 2-0511E, 5.0 VDC, 400 mA, 73 %

Technical specifications
Filter Property Value
Number of outputs 1
Output current 400 mA
Output voltage DC 5 VDC
Input voltage AC 4.5-9 VDC
Power 2 W
efficiency 73 %
Design SIP8
Isolation voltage 1 kV
Length 21.8 mm
Width 9.3 mm
Height 11.2 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Original Packaging Bar with 10 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
