TMR 12-1215WI | TRACO POWER

DC converter, 4.5-18 VDC, 12 W, 1 output, 24 VDC, 90 % efficiency, TMR 12-1215WI

Order No.: 35C1612
EAN: 7613441068596
MPN:
TMR 12-1215WI
Series: TMR 12WI
TMR 12-1215WI TRACO POWER DC/DC Converters

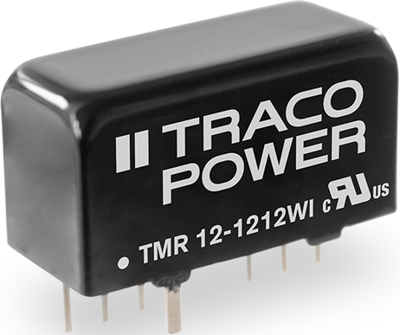

Image may differ
Unit Price (€ / pc.)
34.7004 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
34.70 € *
Price list
Quantity
Price per unit*
1 pcs.
34.7004 €
10 pcs.
31.2256 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC Converter, TMR 12-1215WI, TRACO POWER

The TMR 12WI is a family of isolated 12W DC/DC converter module with regulated output, featuring wide 4:1 input voltage ranges. This product offers a very high power density of 4.73W/cm³ in an ultra-compact SIP-8 metal package occupying only 2.0 cm² (0.3 square inch) of board space. An excellent efficiency of up to 90% allows for an extended operating temperature range of -40° to +65°C without derating under natural convection conditions (see recommended PCB layout). Further features include remote On/Off control, continuous short circuit protection and an I/O isolation voltage of 1600 VDC. The very compact dimensions of ths converter makes it an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics.

Features

  • High efficiency (up to 90%) for low thermal loss
  • Fully regulated outputs
  • Remote On/Off control
  • Indefinite short circuit protection
Technical specifications
Number of outputs 1
Output current 500 mA
Output voltage DC 24 VDC
Input voltage AC 4.5-18 VDC
Power 12 W
efficiency 90 %
Design SIP8
Isolation voltage 1.6 kV
Length 22 mm
Width 9.6 mm
Height 12 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
