TMH 0515D | TRACO POWER

DC converter, 4.5-5.5 VDC, 2 W, 2 outputs, ±15 VDC, 79 % efficiency, TMH 0515D

Order No.: 26K1790
EAN: 4099891298098
MPN:
TMH 0515D
Series: TMH

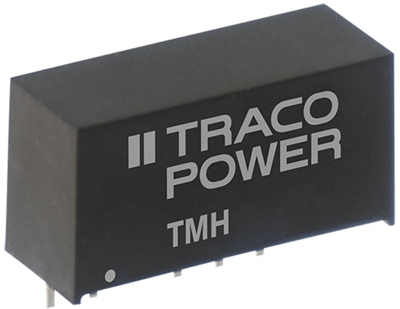

TMH 0515D TRACO POWER DC/DC Converters
Image may differ
Unit Price (€ / pc.)
7.6160 € *
Available: 10 pcs.
Total Price:
7.62 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6160 €
10 pcs.
6.8663 €
*incl. VAT plus shipping costs
Subject to prior sale

DC converters, type Traco TMH.

2.0 W version in SiL package, pin-compatible with other brands, high efficiency and 100 % burn-in (8.0 h); Input current no-load/full load: 50 mA/510 mA at 5.0 VDC, 20 mA/200 mA at 12 VDC, 10 mA/100 mA at 24 VDC. Adjustment tolerance: ±3.0 %. Control error on input/load fluctuation: ±1.2 %/±10 %. Residual ripple: 75 mVpp, as of 12 V 150 mVpp. Temperature coefficient: ±0.02 %/°C. Operating temperatures: –40 to +85 °C. I/O test voltage: 1000 VDC. Insulation resistance: 1000 Mohm. Switching frequency: 80 kHz.

Technical attributes (type, input voltage range, output voltage/current, typical efficiency): TMH 0515D, 5.0 VDC, 2 x OUT, ±15 VDC/±65 mA, 79 %

Technical specifications
Filter Property Value
Number of outputs 2
Output current 66 mA
Output voltage DC ±15 VDC
Input voltage AC 4.5-5.5 VDC
Power 2 W
efficiency 79 %
Design SIP7
Isolation voltage 1 kV
Length 19.5 mm
Width 7.6 mm
Height 10.2 mm
Logistics
Property Value
Original Packaging Bar with 10 pieces
Country of origin TW
Customs tariff number 85044095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
