TMDC 60-4818 | TRACO POWER

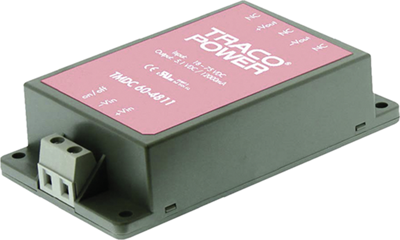

DC converter, 18-75 VDC, 60 W, 1 output, 48 VDC, 91 % efficiency, TMDC 60-4818
Unit Price (€ / pc.)
94.2004 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
94.20 € *
Price list
Quantity
Price per unit*
1 pcs.
94.2004 €
10 pcs.
84.7756 €
*incl. VAT plus shipping costs
Subject to prior sale
DC converters, type Traco TMDC 60.
60 W converter, sealed plastic housing, integrated filter to EN 55022 class A; 4 : 1 extended-range input, polarity reversal protection, no minimum burden required, remote On/Off. Output voltage tolerance: ±2.0 %. Residual ripple: 5.1/12 and 24/48 V 100/150/200 mVpp. Operating temperatures: –40 to +85 °C. I/O insulation voltage: 2500 VDC. Insulation resistance: min. 1.0 Gohm. MTBF: 242049 h at +25 °C. Table index: type, output voltage, efficiency.
Input voltage range from 18 to 75 VDC.
Technical attributes (type, output voltage, efficiency): TMDC 60-4818, 48 VDC, 1.25 A, 91 %
Technical specifications
| Filter | Property | Value |
|---|---|---|

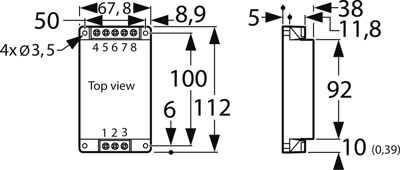

| Width | 67.8 mm | |
| Power | 60 W | |
| Length | 112 mm | |
| Input voltage AC | 18-75 VDC | |
| Isolation voltage | 2.5 kV | |
| Output current | 1.25 A | |
| efficiency | 91 % | |
| Number of outputs | 1 | |
| Height | 38 mm | |
| Output voltage DC | 48 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
