TMDC 40-4812 | TRACO POWER
DC converter, 18-75 VDC, 40 W, 1 output, 12 VDC, 91 % efficiency, TMDC 40-4812
Unit Price (€ / pc.)
77.3619 € *
Available in 7 Days: 57 pcs. - if ordered today
Total Price:
77.36 € *
Price list
Quantity
Price per unit*
1 pcs.
77.3619 €
5 pcs.
69.6388 €
*incl. VAT plus shipping costs
Subject to prior sale

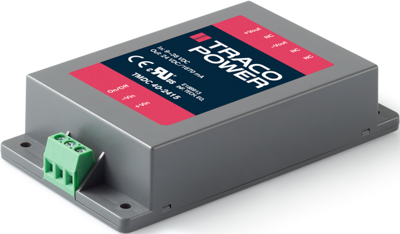

DC/DC Converter, TMDC 40-4812, TRACO POWER
The TMDC 40 is a range of encapsulated high performance DC/DC converter modules. With a very high efficiency of up to 92% and the use of highest reliable components This 40 W converter are avialable as a chassis-mount with screw terminlas or PCB versions. The 8 models have a wide 4:1 input voltage range and a tight output voltage regulation. It do not need a minimum load and offer a high efficiency also at low load conditions. It features a remote control input and a green power good LED which indicates the presence of the output voltage. Protection against overload and short circuIt is standard features of ths converter. EMC characteristics and safety certifications are aligned for the operation in industrial environment.
Features
- Fully encapsulated low profile plastic case
- Excellent efficiency up to 92 %
- Optional DIN-Rail mount adapter
- No minimum load required
- Power good LED indicator and remote on/off function
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 12 VDC | |
| Output current | 3330 mA | |
| Width | 63.8 mm | |
| Isolation voltage | 2.5 kV | |
| Number of outputs | 1 | |
| Height | 25.6 mm | |
| Power | 40 W | |
| efficiency | 91 % | |
| Length | 112 mm | |
| Input voltage AC | 18-75 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
