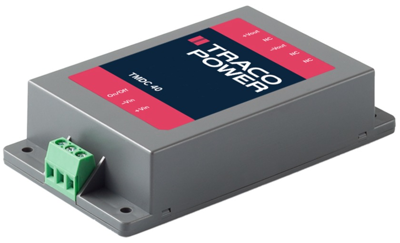

TMDC 40-2415 | TRACO POWER

DC converter, 9-36 VDC, 40 W, 1 output, 24 VDC, 90 % efficiency, TMDC 40-2415

Order No.: 34C794
EAN: 4099891338480
MPN:
TMDC 40-2415
Series: TMDC 40
TMDC 40-2415 TRACO POWER DC/DC Converters
Image may differ
Unit Price (€ / pc.)
74.1727 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
74.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
74.1727 €

DC converters, type Traco TMDC 40.

40 W converter, sealed plastic housing, integrated filter to EN 55022 class A; 4 : 1 extended-range input, Remote On/Off. Output voltage tolerance: ±2.0 %. Residual ripple: 5.1/12 and 24/48 V 100/150/200 mVpp. Operating temperatures: –40 to +85 °C. I/O insulation voltage: 2500 VDC. Insulation resistance: min. 1.0 Gohm. MTBF: 644290 h at +25 °C.

Input voltage range from 9.0 to 36 VDC.

Technical attributes (type, output voltage, efficiency): TMDC 40-2415, 24 VDC, 1670 mA, 91 %

Technical specifications
Output voltage DC 24 VDC
Output current 1.67 A
Width 63.8 mm
Height 25.6 mm
Power 40 W
Length 112 mm
Isolation voltage 2.5 kV
Number of outputs 1
efficiency 90 %
Input voltage AC 9-36 VDC
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
