THR 10-7222WI | TRACO POWER
DC converter, 40-160 VDC, 10 W, 2 outputs, ±12 VDC, 86 % efficiency, THR 10-7222WI
Unit Price (€ / pc.)
48.2902 € *
Available in 7 Days: 90 pcs. - if ordered today
Total Price:
48.29 € *
Price list
Quantity
Price per unit*
1 pcs.
48.2902 €
10 pcs.
43.4588 €
*incl. VAT plus shipping costs
Subject to prior sale

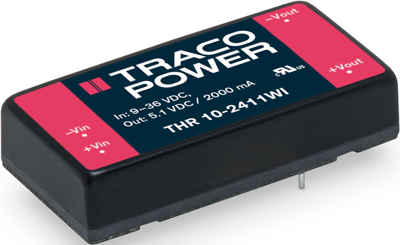

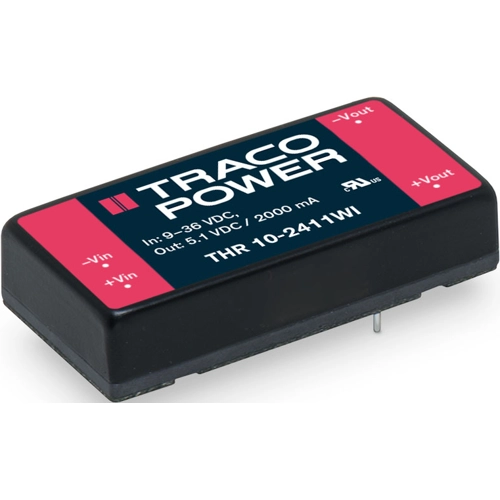

DC/DC Converter, THR 10-7222WI, TRACO POWER
The THR 10WI is 10 Watt DC/DC converter with reinforced isolation (3000 VAC). This regulated DC/DC converter comes in either a 2"x1" package and also features increased resistance against shock and vibration according to EN 61373. The THR 3WI offers an internal input filter to comply with EN 55032 class A. High efficiencies up to 89% allow safe operation from -40°C to +90°C (with derating). All models have a wide 4:1 input voltage range and precisely regulated, isolated output voltages. With the latest IT safety certifications (IEC/EN/UL 62368-1) the THR 10WI is the perfect choice for many demanding applications in the industrial, transportation and instrumentation sectors.
Features
- High efficiency up to 89%
- Protection against overload,
- Overvoltage and short circuit
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | ±12 VDC | |
| Output current | 417 mA | |
| Width | 25.4 mm | |
| Isolation voltage | 3 kV | |
| Number of outputs | 2 | |
| Height | 11 mm | |
| Power | 10 W | |
| efficiency | 86 % | |
| Length | 50.8 mm | |
| Input voltage AC | 40-160 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
