THN 30-4823 | TRACO POWER

DC converter, 36-75 VDC, 30 W, 2 outputs, ±15 VDC, 92 % efficiency, THN 30-4823

Order No.: 34C740
EAN: 4099891338305
MPN:
THN 30-4823
Series: THN 30
THN 30-4823 TRACO POWER DC/DC Converters Image 1

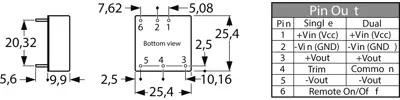

THN 30-4823 TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
82.7645 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
82.76 € *
Price list
Quantity
Price per unit*
1 pcs.
82.7645 €
10 pcs.
74.4940 €
*incl. VAT plus shipping costs
Subject to prior sale

DC converters, type Traco THN 30.

30 W converter, shielded metal housing, insulated base plate; Features: 2 : 1 extended-range input, variable output voltage, thermal overload protection. Output voltage tolerance: 1.0 %. Residual ripple: 75 mVpp ( 2 x OUT 60 mVpp). Operating temperatures without/with heatsink: –40 to +80/–40 to +85 °C (suitable heatsink: THN-HS1). I/O insulation voltage: 1500 VDC. Insulation resistance: min. 1.0 Gohm. MTBF: 1.3 million h at +25 °C.

Input voltage range from 36 to 75 VDC.

Technical attributes (type, number of outputs, output voltage, output current, efficiency): THN 30-4823, 2 x OUT, ±15 VDC, ±1000 mA, 92 %

Technical specifications
Number of outputs 2
Output current 1 A
Output voltage DC ±15 VDC
Input voltage AC 36-75 VDC
Power 30 W
efficiency 92 %
Design DIP6
Isolation voltage 1.5 kV
Length 25.4 mm
Width 25.4 mm
Height 9.9 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
