THN 20-1222 | TRACO POWER

DC converter, 9-18 VDC, 20 W, 2 outputs, ±12 VDC, 89 % efficiency, THN 20-1222

Order No.: 32C2163
EAN: 7613441025995
MPN:
THN 20-1222
Series: THN 20
THN 20-1222 TRACO POWER DC/DC Converters

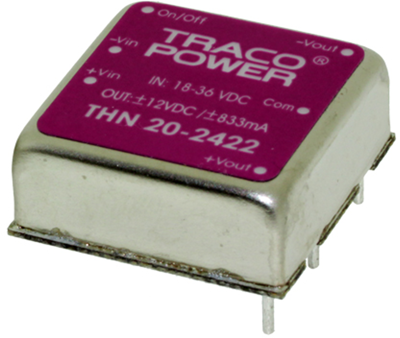

Image may differ
Unit Price (€ / pc.)
54.1569 € *
Available in 7 Days: 150 pcs. - if ordered today
Total Price:
54.16 € *
Price list
Quantity
Price per unit*
1 pcs.
54.1569 €
10 pcs.
48.7424 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC converters, Traco THN 20-1222

The THN-20 series is the latest generation of high performance dc-dc converter modules with highest power density. The product achieves 20W output power while it comes in a metal case with dimensions of only 1.0”x 1.0” x 0.4”. All models have a wide 2:1 input voltage range and precisely regulated output voltages, even under no load conditions. Highest efficiency of up to 90% makes this product very reliable and applicable in temperature ranges of up to 75°C or 85°C with optional mounted heat sink. Together with low input current characteristics at minimal load and remote On/Off control these converters are the ideal solution for battery-operated systems. Typical applications are in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on the PCB is critical.

Technical specifications
Filter Property Value
Number of outputs 2
Output current 833 mA
Output voltage DC ±12 VDC
Input voltage AC 9-18 VDC
Power 20 W
efficiency 89 %
Design DIP6
Isolation voltage 1.5 kV
Length 25.4 mm
Width 25.4 mm
Height 9.9 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
