THN 15-7215UIR | TRACO POWER
DC converter, 14-160 VDC, 15 W, 1 output, 24 VDC, 87 % efficiency, THN 15-7215UIR
Unit Price (€ / pc.)
73.8276 € *
Available in 10 days: 30 pcs. - if ordered today
Total Price:
73.83 € *
Price list
Quantity
Price per unit*
1 pcs.
73.8276 €
10 pcs.
66.4377 €
*incl. VAT plus shipping costs
Subject to prior sale

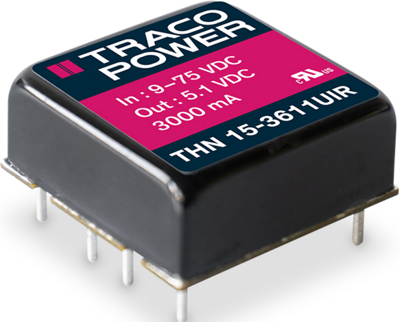

DC/DC Converter, THN 15-7215UIR, TRACO POWER
The THN 15UIR is a high-performance DC/DC converter with an ultra-wide 12:1 input voltage range and a power output of 15 watt. The THN 15UIR comes in a compact, fully encapsulated 1”x1” housing for highest reliability and effective cooling. Thanks to its dedicated holdup capacitor connection, the THN 15UIR meets extended holdup-time requirements without the need for bulky input capacitors. The THN 15UIR is EN 50155 certified for rolling stock applications, EN 61373 certified for resistance against mechanical shock and vibration and EN 45545-2 certified for fire behavior. The THN 15UIR also comes with IEC/EN/UL 62368-1 safety approvals for use in a wide range of demanding industrial applications.
Features
- Dedicated holdup capacitor connection
- Fully encapsulated
- Remote on/off and trim function
- Protection against short-circuit (SCP)
- Overvoltage (OVP)
- Overtemperature (OTP)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage AC | 14-160 VDC | |
| Height | 9.9 mm | |
| Output voltage DC | 24 VDC | |
| efficiency | 87 % | |
| Power | 15 W | |
| Output current | 625 mA | |
| Number of outputs | 1 | |
| Width | 25.4 mm | |
| Length | 25.4 mm | |
| Isolation voltage | 3 kV |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
